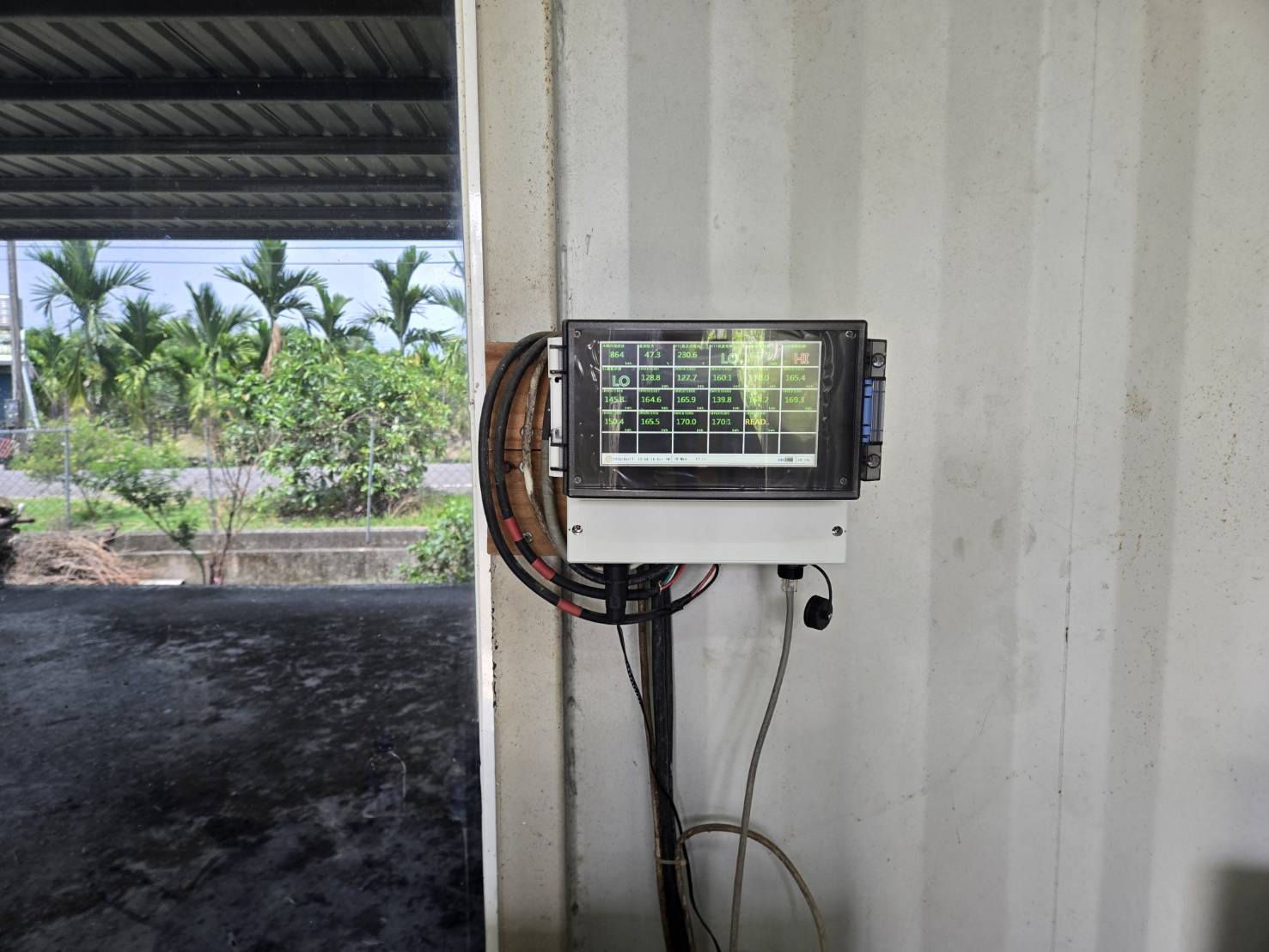

7" IoT Control System
I6
．Integrates cloud server, SMS alert system, and data report center, providing real-time monitoring and alerts for various environmental indicators.
．Operates without a computer host and supports remote web browsing and management, suitable for security monitoring of diverse environments and equipment.
–Application areas–
Mobile inspection, air/noise/water/sewage monitoring, water level alert, gas leakage, sluice/groundwater monitoring, unmanned monitoring stations, plant factories.
Download
Center
Feature of Product
Optional Code & Specifications
I6
Code
1
Code
2
Code
3
Code
4
| Code 1 | Record mode/ AI module | Code 2 | SMS module | Code 3 | Installation | Code 4 | Battery |
|---|---|---|---|---|---|---|---|
| N | Without AI function | N | None | W | Wall-mounted | N | Without Adapter |
| D | With AI function | 4G | 4G with built-in antenna | R | Aluminum Rail | AC12 | DC12V/ 2A Adapter |
| 4GO | 4G with external antenna | M | Magnetic | AC24 | DC24V/ 1A Adapter |
| Code 1 | Record mode/ AI module | Code 2 | SMS module |
|---|---|---|---|
| N | Without AI function | N | None |
| D | With AI function | 4G | 4G with built-in antenna |
| 4GO | 4G with external antenna |
| Code 3 | Installation | Code 4 | Battery |
|---|---|---|---|
| W | Wall-mounted | N | Without Adapter |
| R | Aluminum Rail | AC12 | DC12V/ 2A Adapter |
| M | Magnetic | AC24 | DC24V/ 1A Adapter |
| Power | DC9~36V | |
|---|---|---|
| Power Consumption : 10.6W | ||
| Working Environment | Operating Temp | -10°C~60°C (14°F~140°F) |
| Storage Temp | -20°C~70°C (-4°F~158°F) | |
| Relative Humidity | 0~95 % RH (non-condensing) | |
| Alarm Output | Common Point Alarms x 2 | With reset function |
| Relay Capacity | 1A / DC24V ※Loading with Relay | |
| Communication | Interface | RS-485 x 1 port / Ethernet |
| Protocol | Modbus RTU / Modbus TCP / Web Server | |
| SMS Message | SIM card for 4G system | |
| Signal Input | Input Point (AI) | AI x 6 points |
| Input Signal (AI) | 4-20mA/DI/PT100/mV with software | |
| Signal Input (DI) | 2 points | |
| Display Board | 7 inch Chinese color touch screen / historical and trend charts | |
| Resolution 800x480 | ||
| Physical Conditions | Dimension | 235x185x119 (W × H × D，mm) |
| Weight | 1.5Kg | |
| Installation Type | Wall-mounted / Aluminum Rail / Magnetic | |
| Housing | Material | ABS |
| International Protection Marking | IP65 | |
| Record | USB recording function, supports up to 64GB (FAT32 format) | |
| Software | USB reading software | |
| Certificate | CE、FCC | |
| Patent | R.O.C. Patent No.M340502 / No.M474956 / No.I501088 China Patent No.3968342 / No.2514208 / No.1211656 | |
| Power | DC9~36V | |
|---|---|---|
| Power Consumption : 10.6W | ||
| Working Environment | Operating Temp | -10°C~60°C (14°F~140°F) |
| Storage Temp | -20°C~70°C (-4°F~158°F) | |
| Relative Humidity | 0~95 % RH (non-condensing) | |
| Alarm Output | Common Point Alarms x 2 | With reset function |
| Relay Capacity | 1A / DC24V ※Loading with Relay | |
| Communication | Interface | RS-485 x 1 port / Ethernet |
| Protocol | Modbus RTU / Modbus TCP / Web Server | |
| SMS Message | SIM card for 4G system | |
| Signal Input | Input Point (AI) | AI x 6 points |
| Input Signal (AI) | 4-20mA / DI / PT100 / mV with software | |
| Signal Input (DI) | 2 points | |
| Display Board | 7 inch Chinese color touch screen / historical and trend charts | |
| Resolution 800x480 | ||
| Physical Conditions | Dimension | 235x185x119 (W × H × D，mm) |
| Weight | 1.5Kg | |
| Installation Type | Wall-mounted/ Aluminum rail/ Magnetic | |
| Housing | Material | ABS |
| International Protection Marking | IP65 | |
| Record | USB recording function, supports up to 64GB (FAT32 format) | |
| Software | USB reading software | |
| Certificate | CE、FCC | |
| Patent | R.O.C. Patent No.M340502 / No.M474956 / No.I501088 China Patent No.3968342 / No.2514208 / No.1211656 | |
