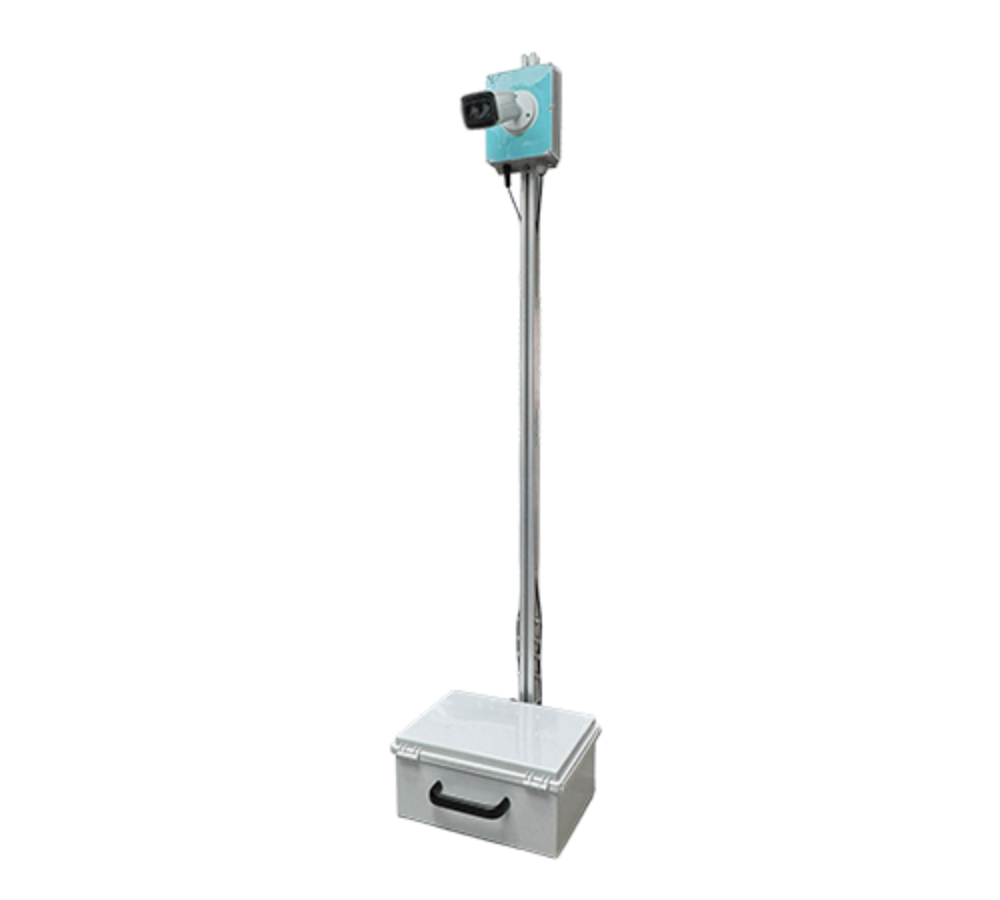

Mobile loT Environment Camera MIEC

首頁 Software/Accessories/Case/Camera Mobile loT Environment Camera MIEC

• Supports AC power, solar power, and battery power, enabling flexible deployment and remote real-time monitoring anytime, anywhere. • Offers 20,000 and 50,000 pixel options, employing H.265 compression technology to achieve high-quality images with low bandwidth and high transmission efficiency. • Built-in infrared night vision (up to 80 meters), IP67 protection rating, ensuring reliable 24/7 operation in indoor and outdoor environments. • Supports intrusion detection and border crossing detection, and can classify people/vehicles. It also features dry contact I/O to enhance smart security integration.

Construction sites, environmental monitoring, agriculture, and smart city applications

Download Center 型錄操作手冊產品常見問題

Feature of Product

HD Video 2MP CMOS sensor with 1920x1080 resolution for sharp imaging

Night Vision 0.08Lux minimum illumination with 30m IR distance for low-light clarity

Waterproof IP67 camera and IP68 4G unit suitable for outdoor use

Smart Connectivity Automatically selects or fixes frequency bands for stable transmission

Optional Code & Specifications

MIEC Code 1Code 2Code3Code4Code5

Code1	Communication	Code2	Callback Function	Code3	Types of cameras
N	Ethernet	N	Live Image	200	2 million pixels No contact function
4G	Including 4G route	7D	7 days of recording and playback	500	5 million pixels With input/output dry contacts

Code4

Photo push

Code5

Battery capacity

None

196

196Ah

(can last for 10 days on pure battery power)

FTP

With photo push andintrusion or crossing line settings

Model(Code 3)	MIEC-N-N-200-N-196	MIEC-N-N-500-N-196
Power supply	DC 12V/2.1W(MAX:4.2W)	DC 12V/2.2W(MAX:7.4W)



Working temperature and humidity	-40~60 ℃ / ≦95%
Effective pixels	2 million pixels, 1920 (H) × 1080 (V)	5 million pixels, 2960(H)×1668(V)
Minimum illumination	0.002 [email protected](Color) 0.0002 [email protected](Black and White) 0 lux(Illuminator on)	0.007 lux @F1.6(Color,30 IRE) 0.0007 lux @F1.6(Black and White,30 IRE) 0 lux(Illuminator on)
Infrared	1 group, maximum lighting distance 30 meters	4 groups, maximum lighting distance 80 meters
Focal length	2.8mm、3.6mm	3.6 mm / 6 mm / 8 mm
Perimeter protection	Intrusion, crossing the line (supporting the classification and accurate detection of people and vehicles)
Waterproof grade	IP67
Camera size	Length 166.2 mm × Width 70 mm × Height 70 m	Length 238.5 mm × Width 90.7 mm × Height 90.7 mm
