JNC Supervisory Control And
Data Acquisition
JNC SCADA

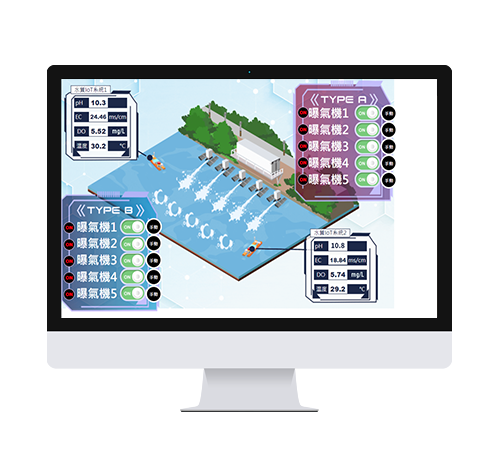

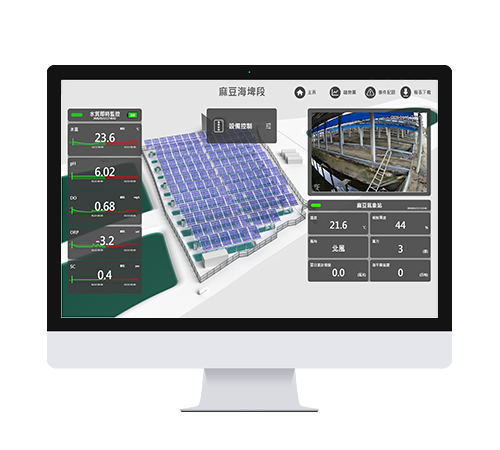

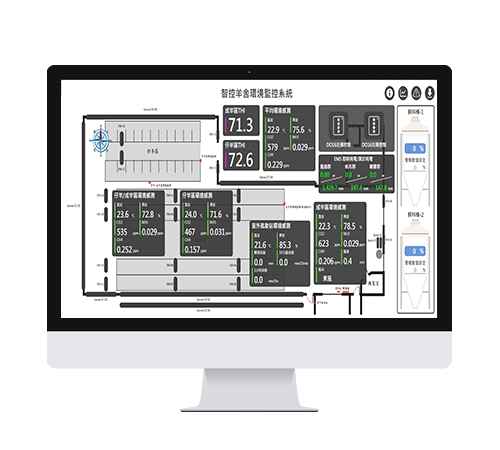

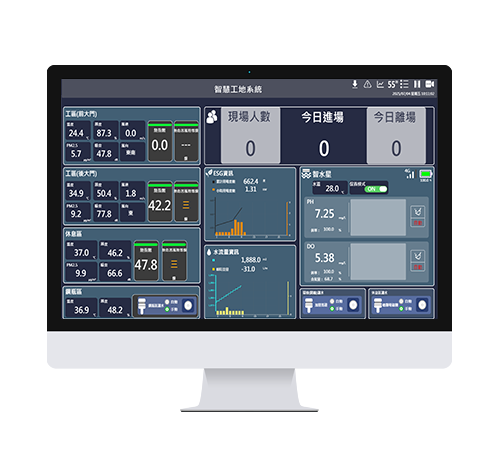

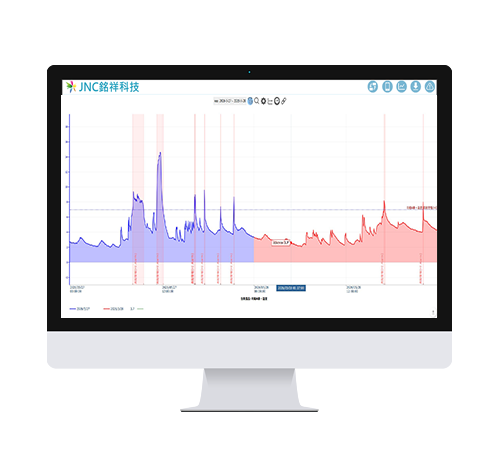

A multifunctional management system integrating powerful data management, alarm functions, flexible data sharing, and in-depth data analysis capabilities, providing comprehensive and intelligent equipment monitoring.
It offers a Web Server interface and wireless Wi-Fi, capable of simultaneously displaying and managing 30 JNC devices, supporting various data analysis and alarm features.
–Application areas–
Unified management interface system without the need for programming.
Download
Center
Feature of Product
Optional Code & Specifications
JNC SCADA Code
1
Code
2
Code
3
Code
4
| Code 1 | Applicable Product | Code 2 | License Period | Code 3 | License Type | Code 4 |
Virtual Modules
|
|---|---|---|---|---|---|---|---|
| D |
All JNC products |
1 | 1 year | N | JNC Hosted | N | None |
| 3 | 3 years | ||||||
| F |
Main Cloud Platform (Capable of managing sub-cloud platform) |
5 | 5 years | Y | Hardware Key | 6 | Noise Control -6 |
| 10 | 10 years | ||||||
| 20 | Buyout | S | Software Key | D | Data Governance |
| Code 1 | Applicable product | Code 2 | License Period |
|---|---|---|---|
| D | All JNC products | 1 | 1 years |
| 3 | 3 years | ||
| F | Main Cloud Platform (Capable of managing sub-cloud platform) | 5 | 5 years |
| 10 | 10 years | ||
| 20 | Buyout |
| Code 3 | License Type | Code 4 |
Virtual Mod (Select multiple options) |
|---|---|---|---|
| N | JNC Hosted | N | None |
| Y | Hardware Key | 6 | Noise control-6 |
| S | Software Key | D | Data Governance |
| Supported Devices | |||
|---|---|---|---|
| Model | Product Name | Model | Product Name |
| CB | Cloud Box | IAQS | IAQ Monitor |
| DO4/DO8/DO16 | IoT Smart Logic Control System | SD | Single Detector |
| I6 | 7" IoT Control System | CTR230 | IAQ Display |
| DATA168T | Touch Screen Network Data Recorder | CTV | IAQ System Certification |
| S400 | LED Display | G6S | Green Fresh Air Kit |
| Recommended Computer Specifications | |
|---|---|
| Processor | Intel Core i5-14500 (above) |
| Memory(RAM) | 16G DDR4 (above) |
| Harddisk(HDD/SSD ) | 1TB (above) |
| Operating System(OS) | Windows 10 (above) |
※If deployed together with the JNC WEE server, please pay attention to the storage requirements: based on 1080P resolution and 7 days of recording, each camera requires approximately 400GB of hard drive space.
※If the server requires external network access, the site must have a static public IP address
| Supported Devices | |||
|---|---|---|---|
| Model | Product Name | Model | Product Name |
| CB | Cloud Box | IAQS | IAQ Monitor |
| DO4/DO8/DO16 | IoT Smart Logic Control System | SD | Single Detector |
| I6 | 7" IoT Control System | CTR230 | IAQ Display |
| DATA168T | Touch Screen Network Data Recorder | CTV | IAQ System Certification |
| S400 | LED Display | G6S | Green Fresh Air Kit |
| Recommended Computer Specifications | |
|---|---|
| Processor | Intel Core i5-14500 (above) |
| Memory(RAM) | 16G DDR4 (above) |
| Harddisk(HDD/SSD ) | 1TB (above) |
| Operating System(OS) | Windows 10 (above) |
※If deployed together with the JNC WEE server, please pay attention to the storage requirements: based on 1080P resolution and 7 days of recording, each camera requires approximately 200GB of hard drive space.
※If the server requires external network access, the site must have a static public IP addres
