．Featuring an IP68 waterproof rating, it is built for durability and resilience, specifically designed for harsh environments.
．It supports multiple communication methods and offers comprehensive monitoring and alert functions, making it ideal for a wide range of outdoor and extreme condition applications.
–Application areas–
Environmental Monitoring, Weather Stations, Independent Monitoring Stations, Flood Monitoring, Pollution Monitoring, Wastewater Treatment Plants, Water Treatment Plants.
Download
Center
Feature of Product
Optional Code & Specifications

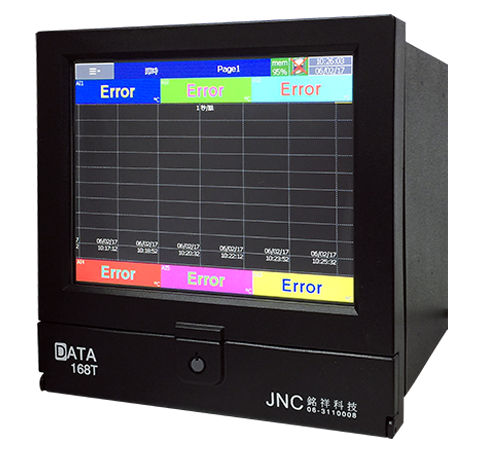

DATA168T— Code 1Code 2
| Code 1 | Expansion cards (select 4) | Code 2 | RS485 function | |
|---|---|---|---|---|
| N | Empty slot cover | N | None | |
| AI | AI06，one card, six points | M | DATA168T captures sensor data | |
| AO | AO06，one card, six points | |||
| DI | DI06，one card, six points | S | Let the image capture controller grab DATA168T of data |
|
| DO | DO06，one card, six points |
|||
| Power Supply | 90 ~ 250 VAC (50/60 Hz) | |
|---|---|---|
| Power consumption approximately 26 W | ||
| CPU / Memory | 1 GHz high-performance ARM processor | 256 MB RAM | 256 MB Flash | Supports SD card (up to 32 GB) and USB expansion | |
| Display Screen | 5.6-inch TFT LCD color touchscreen | |
| Sampling Rate | Fastest interval is 100 milliseconds, default interval is 1 second. | |
| Thermocouple Input | J, K, T, E, B, R, S, N, L, U, P, W3, W5, LR, A1, A2, A3, M (18 types in total) | |
| Resistor Input | Pt50 / Pt100 / Pt200 / Pt500 / Pt1000 (α = 0.00385)、JPt50 / JPt100 / JPt200 / JPt500 / JPt1000 (α = 0.003916)、Ni100 / Ni200 / Ni500 / Ni1000 | |
| Voltage / Current | mV, V, mA general-purpose signal input | |
| Analog Input Card | Each card has 6 points, and a maximum of 4 cards can be combined (total 24 points). | |
| Analog Output Card | Each output has 6 points, with selectable output ranges of 0-20mA, 4-20mA, 0-5VDC, 1-5VDC, and 0-10VDC. | |
| Digital Input Card | Each card has 6 points and can be used as a general logic input or a high-speed pulse counter. | |
| Digital Output Card | Each sheet has 6 relay contact outputs. | |
| Communication Interface | Standard configuration includes Modbus TCP/IP Ethernet | Optional RS-232, RS-422, or RS-485 (Modbus RTU) | |
| Data Export | Reports can be exported as PDF, Excel, and CSV files, and support web browsing and email notifications. | |
| Firmware | The standard version includes built-in mathematical operations; the advanced version also offers batch recording, FDA 21 CFR Part 11 compliance, and customizable screen editing features (which can be selected individually or combined). | |
| Multi-language |
19 language interfaces, covering Traditional Chinese, Simplified Chinese, English, Japanese, Korean, German, French, Spanish, Portuguese, Russian, etc. |
|
|
Casing Dimensions |
144 × 144 × 189 mm｜Depth 171 mm |
|
| Panel Cutout Dimensions |
137 × 137 mm |
|
| Protection Rating |
Front panel IP65 waterproof and dustproof | Back panel IP20 |
|
| Operating Environment |
Operating temperature: 0 ~ 50°C | Storage temperature: -30 ~ 70°C | Relative humidity: 20 ~ 80% RH (non-condensing) |
|
| Safety Specifications |
Certified by CE, cULus, and RoHS | Quality assurance compliant with ISO 9001 |
|
| Code 1 | Expansion cards (select 4) | Code 2 | RS485 function | |
|---|---|---|---|---|
| N | Empty slot cover | N | None | |
| AI | AI06，one card, six points | M | DATA168T captures sensor data | |
| AO | AO06，one card, six points | |||
| DI | DI06，one card, six points | S | Let the image capture controller grab DATA168T of data |
|
| DO | DO06，one card, six points |
|||
| Power Supply | 90 ~ 250 VAC (50/60 Hz) | |
|---|---|---|
| Power consumption approximately 26 W | ||
| CPU / Memory | 1 GHz high-performance ARM processor | 256 MB RAM | 256 MB Flash | Supports SD card (up to 32 GB) and USB expansion | |
| Display Screen | 5.6-inch TFT LCD color touchscreen | |
| Sampling Rate | Fastest interval is 100 milliseconds, default interval is 1 second. | |
| Thermocouple Input | J, K, T, E, B, R, S, N, L, U, P, W3, W5, LR, A1, A2, A3, M (18 types in total) | |
| Resistor Input | Pt50 / Pt100 / Pt200 / Pt500 / Pt1000 (α = 0.00385)、JPt50 / JPt100 / JPt200 / JPt500 / JPt1000 (α = 0.003916)、Ni100 / Ni200 / Ni500 / Ni1000 | |
| Voltage / Current | mV, V, mA general-purpose signal input | |
| Analog Input Card | Each card has 6 points, and a maximum of 4 cards can be combined (total 24 points). | |
| Analog Output Card | Each output has 6 points, with selectable output ranges of 0-20mA, 4-20mA, 0-5VDC, 1-5VDC, and 0-10VDC. | |
| Digital Input Card | Each card has 6 points and can be used as a general logic input or a high-speed pulse counter. | |
| Digital Output Card | Each sheet has 6 relay contact outputs. | |
| Communication Interface | Standard configuration includes Modbus TCP/IP Ethernet | Optional RS-232, RS-422, or RS-485 (Modbus RTU) | |
| Data Export | Reports can be exported as PDF, Excel, and CSV files, and support web browsing and email notifications. | |
| Firmware | The standard version includes built-in mathematical operations; the advanced version also offers batch recording, FDA 21 CFR Part 11 compliance, and customizable screen editing features (which can be selected individually or combined). | |
| Multi-language |
19 language interfaces, covering Traditional Chinese, Simplified Chinese, English, Japanese, Korean, German, French, Spanish, Portuguese, Russian, etc. |
|
|
Casing Dimensions |
144 × 144 × 189 mm｜Depth 171 mm |
|
| Panel Cutout Dimensions |
137 × 137 mm |
|
| Protection Rating |
Front panel IP65 waterproof and dustproof | Back panel IP20 |
|
| Operating Environment |
Operating temperature: 0 ~ 50°C | Storage temperature: -30 ~ 70°C | Relative humidity: 20 ~ 80% RH (non-condensing) |
|
| Safety Specifications |
Certified by CE, cULus, and RoHS | Quality assurance compliant with ISO 9001 |
|
