Electrical Conductivity Sensor
EC485
Electrical Conductivity Sensor EC485

Smart IoT Monitoring
RS-485 & Wi-Fi dual interfaces. No app or meter required. QR Code access and OTA updates.

Wide Measurement Range
0–500.00 mS/cm range with four-electrode technology and temperature compensation, suitable for pure water to seawater.

IP68 Submersible Design
IP68 corrosion-resistant design for direct immersion, with durable isolated cable and surge protection.

Smart Calibration
Web-based three-point calibration with stored settings and access to the latest three calibration records.

AI Smart Maintenance
Optional auto-cleaning, AI electrode diagnostics, status notifications, and last-reading hold for easier maintenance.

–Application areas– Aquaculture, Seawater, Wastewater, Groundwater, Rivers, Plant Nutrient Solutions.
Feature of Product
Network Interface RS-485 and Wi-Fi web dual interface, no need to install extra apps, supports monitoring and operation via phone or computer Smart Calibration Webpage Interface Scan with your phone to correct Waterproof Design IP68 waterproof rating, can be directly submerged in rivers, wastewater, or seawater for measurement Automatic Cleaning Optional auto-cleaning function extends maintenance intervals
Optional Code & Specifications
EC485 Code 1 Code 2 Code 3
Code 1 Function Code 2  Connector Code 3 Cable / Hose Length
N

No Auto-Cleaning

C Quick plug
3N 3 m+bare wire
3C 3 meters+quick plug
10N 10 m+bare wire
10C 10 meters+quick plug
A24 Auto-clean, DC 24V pump F Cable gland 20N 20 m+bare wire
20C 20 meters+quick plug
x N x m+bare wire
x C x m+quick plug
Code 1 Function Code 2 Connector
N No Auto-Cleaning C Quick plug
A24 Auto-clean, DC 24V pump F Cable gland
Code 3 Cable / Hose Length
3N 3 m+bare wire
3C 3 meters+quick plug
10N 10 m+bare wire
10C 10 meters+quick plug
20N 20 m+bare wire
20C 20 meters+quick plug
x N x m+bare wire
x C x m+quick plug
EC  TDS Temperature
Range

0~500.00 mS/cm

Slope 70~130%
0~320000.0 mg/L Temperature Principle NTC10K
Measuring Rang 0~50°C, ATC
Accuracy ±1% of reading ±1% of reading Accuracy ±0.5°C
Resolution

0.1 µS/cm

Repeat. ±1%
0.1mg/L Resolution 0.1°C
Reproducibility 0.1°C
Electrode Withstand Voltage Max. 0.3 MPa Other Specification
Operating Temperature 0~50°C Link Above 3/4" NPT thread
Link Below M42 thread
Response Time T90 1 S Housing PP, food grade, acid/alkali-proof
Electrode Graphite
Communication

RS-485 Modbus RTU

Wi-Fi web page, no app needed

QR code opens the web page

(192.168.1.80)
Dimension Ø50 x L213.9mm
Weight ≤340g
Certificate

CE(EU)

FCC(US)

Power Auto-Cleaning : DC 24V (Optional)
No Auto-Cleaning : DC 9~36V
Power Consumption Auto-Cleaning : 6.8W
No Auto-Cleaning : 0.8W
Origin

Taiwan

International Protection Marking IP68(CNS 14165)
Technical
Principle Complies with Taiwan EPA NIEA W204.51C; graphite electrodes measure impedance to calculate conductivity.
Data Res.

16-bit (0.001% F.S)

Surge Prot.
DC 8000V
Power Iso.

DC 1500V

Comm. Iso.
RS-485 2500Vrms
Protection Polarity, overload, shorts Installation
Submersion, tee or insertion
EC Specification TDS
Measuring Range

0~500.00 mS/cm

Slope 70~130%
0~320000.0 mg/L
Accuracy ±1% of reading ±1% of reading
Resolution

0.1 µS/cm

Repeat. ±1%
0.1mg/L
Electrode Withstand Voltage Max. 0.3 psi
Operating Temperature 0~50°C
Response Time T90 1 S
Communication

RS-485 Modbus RTU

Wi-Fi web page, no app needed

QR code opens the web page

(192.168.1.80)
Certificate CE (EU)

FCC (US)

Origin

Taiwan

Temperature
Sensor NTC10K
Range 0~50°C, ATC
Accuracy ±0.5°C
Resolution 0.1°C
Reproducibility 0.1°C
Others
Top Thread 3/4" NPT thread
Bottom Thread M42 thread
Housing PP, food grade, acid/alkali-proof
Electrode Graphite
Dimension Ø50 x L213.9mm
Weight ≤340g
Power Cleaning : DC 24V (Opt.)
No Cleaning : DC 9~36V
Consumption Auto-Cleaning : 6.8W
No Auto-Cleaning : 0.8W
IP Rating IP68(CNS 14165)
Technical
Principle Complies with Taiwan EPA NIEA W204.51C; graphite electrodes measure impedance to calculate conductivity.
Data Res. 16-bit (0.001% F.S)
Power Iso. DC 1500V
Protection Polarity, overload, shorts
Surge Prot. DC 8000V
Comm. Iso. RS-485 2500Vrms
Installation Submersion, tee or insertion
PRODUCT VIDEO
PATENT / CERTIFICATION / AWARD
EC485-CE
EC485-FCC
R.O.C Patent No.M618722
China Patent No.15550036
IAIA國際創新 發明聯盟總會-金牌
MTE發明獎-金牌
ACHIEVEMENT

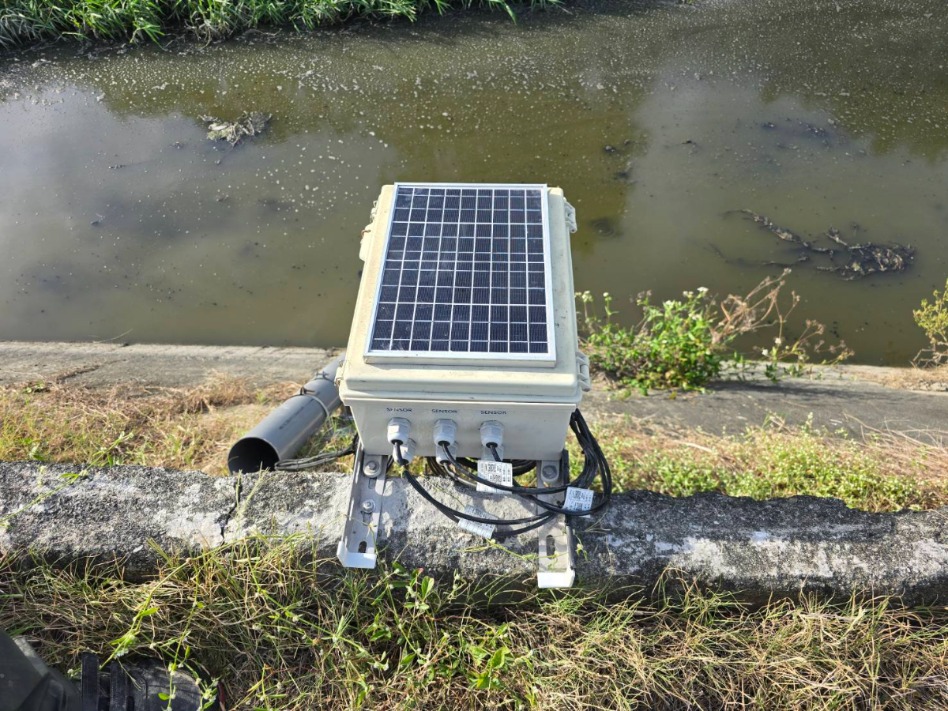

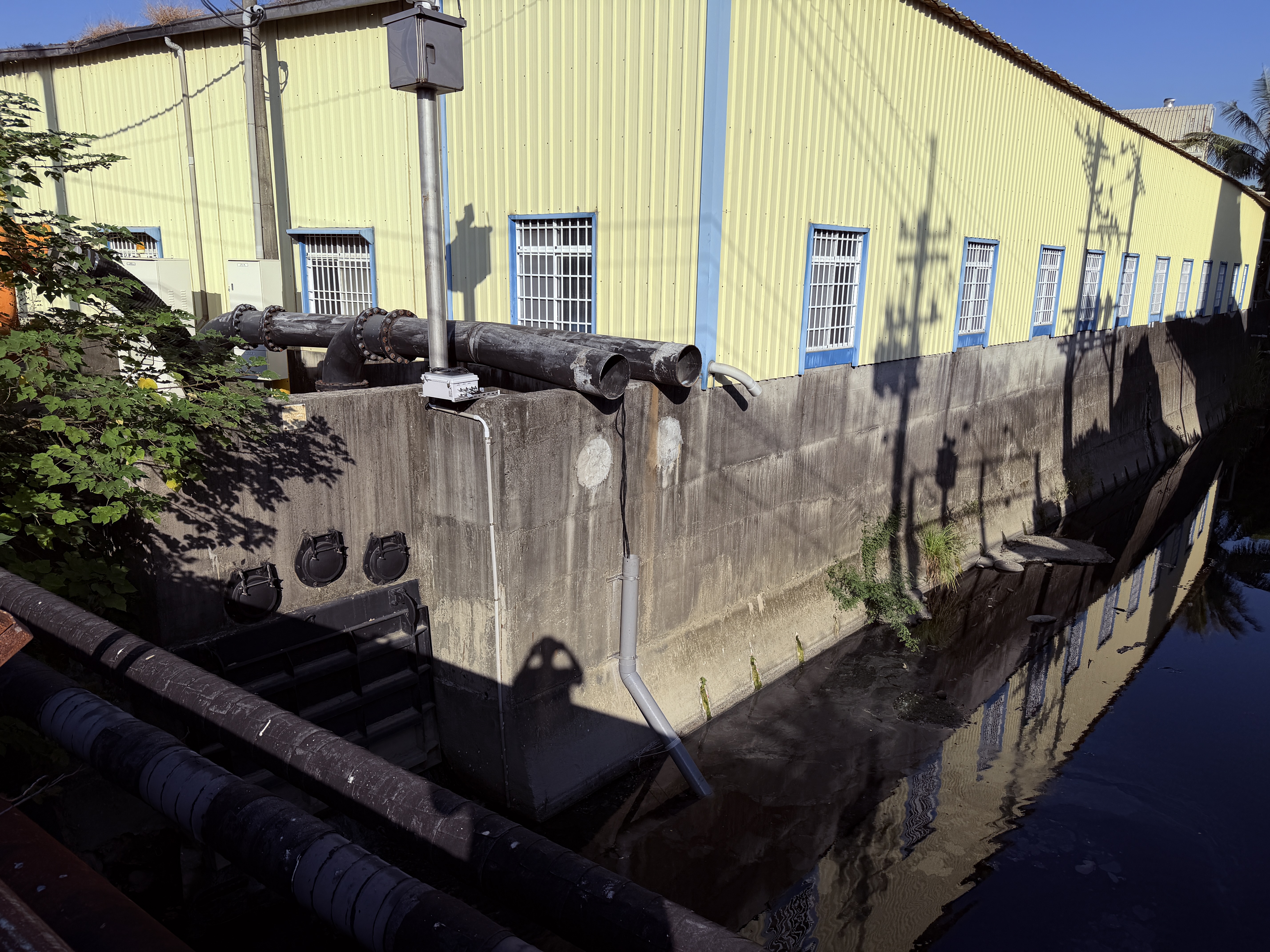

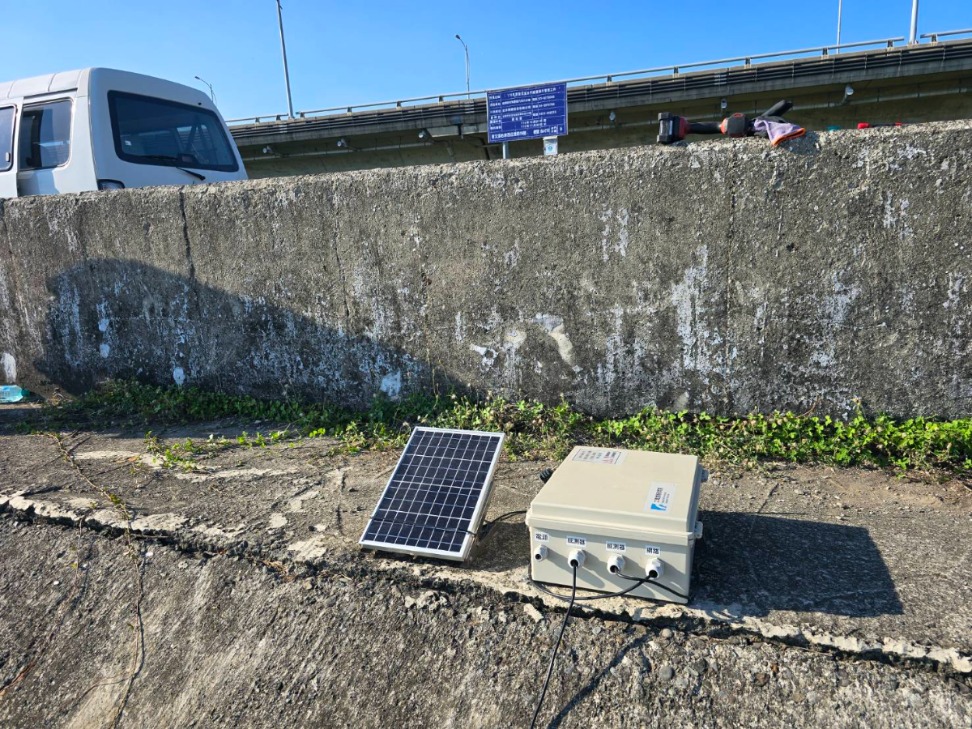

工*院-麻善大橋&西港大橋 工*院-麻善大橋&西港大橋 工研院-曾文溪 工研院-曾文溪 環*-河川汙染預警 環*-河川汙染預警 環*-廢水處理(第二次) 環*-廢水處理(第二次) 環*科技-廢水處理 環*科技-廢水處理 基*德-耀*電子 基*德-耀*電子 官田汙水處理廠整廠水質監控 官田汙水處理廠整廠水質監控 益*環保-自動化監測系統 益*環保-自動化監測系統 順*環球 順*環球 工*院-朴子汙水廠 工*院-朴子汙水廠
