Professional Rain Gauge Sensor
Rain
．Accurately measures and displays instantaneous rainfall as well as rainfall data over various time periods, including 10 minutes, 1 hour, 3 hours, 6 hours, 12 hours, and 24 hours.
．It can show the total rainfall for the day and is equipped with an RS-485 signal output interface for easy data integration and transmission. Its cylindrical design ensures a robust structure.
–Application areas–
Factory pollution source assessment, weather stations, bridges, airports, ships, smart buildings.
Download
Center
Feature of Product
Optional Code & Specifications
Rain
Code 1
| Code 1 | Outlet Mode |
|---|---|
| N | Bare Wire |
| C | Quick Connector |
| Code 1 | Outlet Mode |
|---|---|
| N | Bare Wire |
| C | Quick Connector |
| Power | DC9~36V | |
|---|---|---|
| Power Consumption : ≦0.5W | ||
| Environment | -20~80°C RH100% (non-condensing) | |
| Sensing Principle | Tipping bucket | |
| Rainfall Intensity | 0.01~10 mm/min | |
| Resolution | 0.5mm | |
| Accuracy | ≦±2% | |
| Physical Conditions | Dimension | Cylindrical，Ø216x350 (mm) |
| Weight | 2.2 kg | |
| Rain-carrying Diameter | 200±6mm/314 square centimeters | |
| Housing | Material | Stainless steel |
| Contact Specifications | Output Format | Dry Contact |
| Contact Time | ≦0.1 S | |
| Contact Withstand Voltage | ≧DC 300V | |
| Contact Life | ≧ 1 million time | |
| Communication | Interface | RS-485 |
| Protocol | Modbus RTU | |
| Power | DC9~36V | |
|---|---|---|
| Power Consumption : ≦0.5W | ||
| Environment | -20~80°C RH100% (non-condensing) | |
| Sensing Principle | Tipping bucket | |
| Rainfall Intensity | 0.01~10 mm/min | |
| Resolution | 0.5mm | |
| Accuracy | ≦±2% | |
| Physical Conditions | Dimension | Cylindrical，Ø216x350 (mm) |
| Weight | 2.2 kg | |
| Rain-carrying Diameter | 200±6mm 314 square centimeters | |
| Housing | Material | Stainless steel |
| Contact Specifications | Output Format | Dry Contact |
| Contact Time | ≦0.1 S | |
| Contact Withstand Voltage | ≧DC 300V | |
| Contact Life | ≧ 1 million time | |
| Communication | Interface | RS-485 |
| Protocol | Modbus RTU | |
| Definition of rainfall (Heavy rain) | 24-hour rainfall is greater than 80 mm or 3-hour rainfall is greater than 40 m | |
|---|---|---|
| Definition of rainfall (Extremely heavy rain) | 24-hour rainfall greater than 200 mm or 3-hour rainfall greater than 100 mm | |
| Definition of rainfall (Torrential rain) | 24-hour rainfall greater than 350 m | |
| Definition of rainfall (Extremely torrential rain) | 24-hour rainfall is greater than 500 mm | |
| Definition of rainfall (Heavy rain) | 24-hour rainfall is greater than 80 mm or 3-hour rainfall is greater than 40 m | |
|---|---|---|
| Definition of rainfall (Extremely heavy rain) | 24-hour rainfall greater than 200 mm or 3-hour rainfall greater than 100 mm | |
| Definition of rainfall (Torrential rain) | 24-hour rainfall greater than 350 m | |
| Definition of rainfall (Extremely torrential rain) | 24-hour rainfall is greater than 500 mm | |
PRODUCT VIDEO
PATENT / CERTIFICATION / AWARD

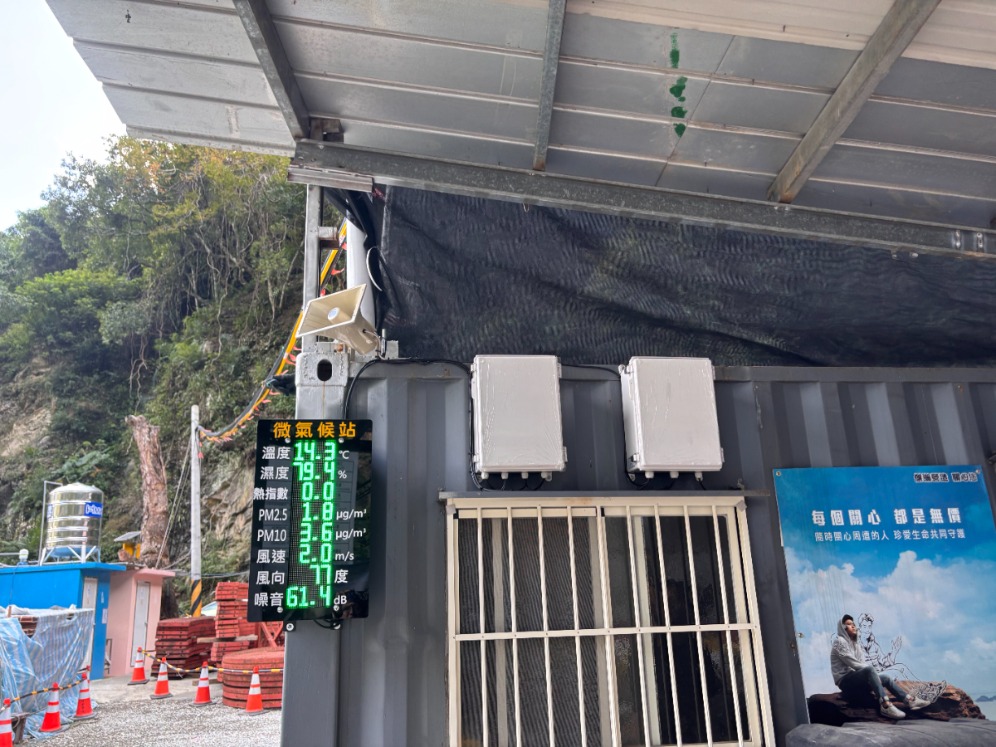

ACHIEVEMENT
