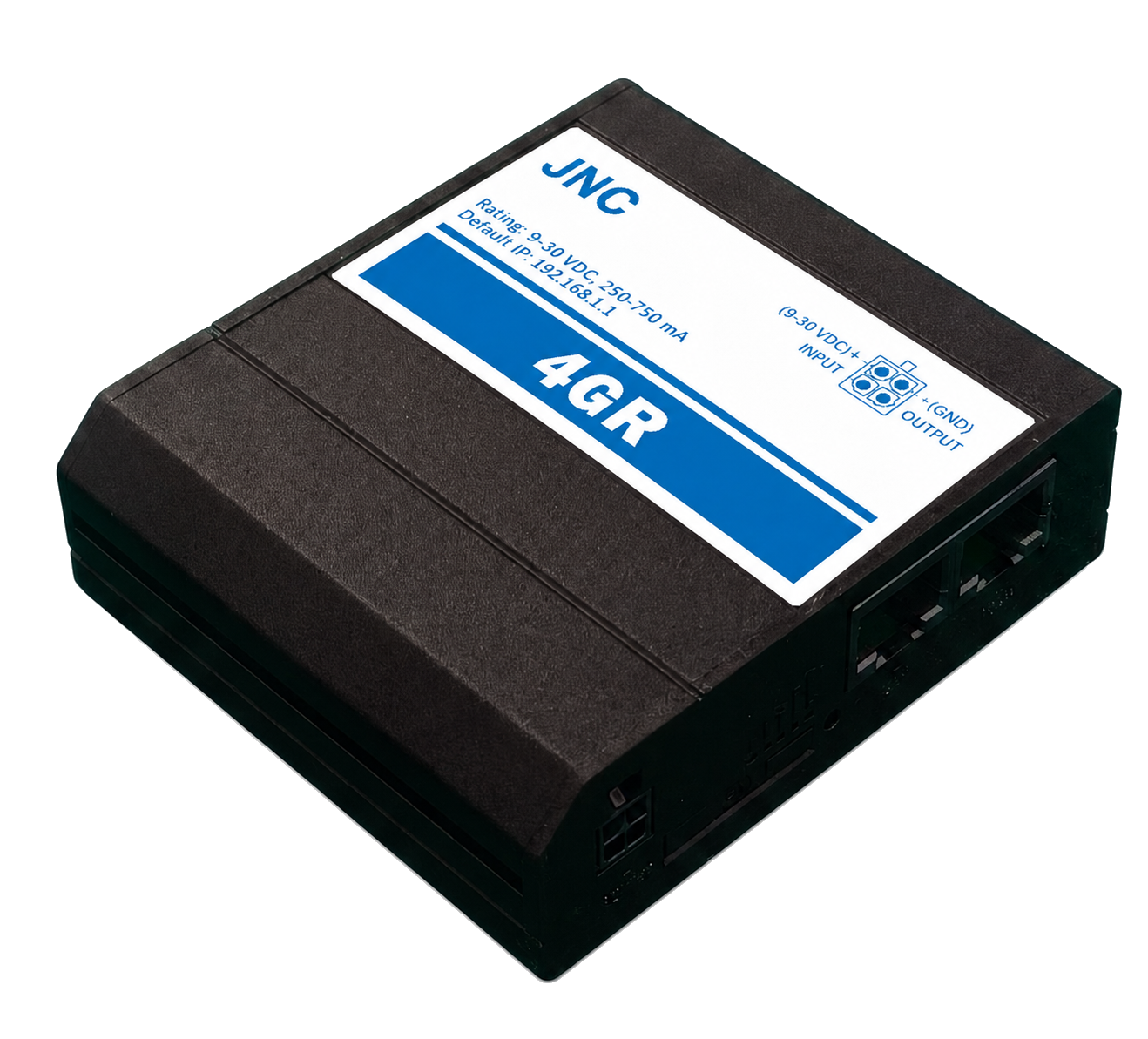

4G Router
4GR
‧4G LTE Cat 4 up to 150 Mbps, with 3G / 2G fallback.
‧Cellular, wired and Wi-Fi WAN with auto failover.
‧Aluminum body, -40 ~ 75 °C, optional IP68 enclosure.
‧Built-in DI / DO for remote monitoring and control.
‧OpenVPN, IPsec, WireGuard VPN and built-in firewall.
‧Syslog remote logging: system, connection and login events sent to your log server in real time.
‧SNMP Trap alerts with configurable rules to notify your network management system.
‧Modbus TCP and MQTT for easy IoT integration.
‧Built-in Wi-Fi access point for up to 50 devices.
‧Cloud remote management and online firmware updates.
–Application areas–
Off-grid sites, environment & water monitoring, greenhouses, factories
Download
Center
Feature of Product
Optional Code & Specifications
4GR
Code
1
Code
2
| Code 1 | Ethernet Ports | Code 2 | Enclosure |
|---|---|---|---|
| N |
WAN×1, LAN×1 (configurable as LAN×2) |
N | No enclosure |
| 175 | IP68 enclosure (PCW175) | ||
| 4 | 4 LAN | ABS | IP68 enclosure 300*300*190mm |
※If code 1 is 4 LAN, code 3 must be equipped with ABS
※4G router compatible with unlimited data SIM plans only.
| Code 1 | Ethernet Ports | Code 2 | Enclosure |
|---|---|---|---|
| N |
WAN×1, LAN×1 (configurable as LAN×2) |
N | No enclosure |
| 175 | IP68 enclosure (PCW175) | ||
| 4 | 4 LAN | ABS | IP68 enclosure 300*300*190mm |
※If code 1 is 4 LAN, code 3 must be equipped with ABS.
※4G router compatible with unlimited data SIM plans only.
| Power | 9 ~ 30 VDC, reverse polarity protection, < 6.5 W |
|
|---|---|---|
| Cellular | 4G LTE Cat 4 (up to 150 Mbps download), 3G, 2G |
|
| Processor & Memory | CPU | 580MHz |
| Memory | 128 MB RAM | |
| Storage | 16 MB Flash | |
| Interface |
Ethernet | 2 × 10/100 Mbps (1 WAN or LAN, 1 LAN) |
| SIM card | 1 × external SIM slot (Mini SIM) | |
| Digital I/O | I/O 1 × DI, 1 × open-collector DO (30 V / 300 mA) | |
| Antenna |
2 × SMA (LTE), 1 × RP-SMA (Wi-Fi) |
|
| Wi-Fi |
802.11 b/g/n, access point / hotspot, up to 50 clients |
|
| VPN |
OpenVPN, IPsec, WireGuard, L2TP, PPTP, GRE |
|
| Protocols |
TCP, UDP, IPv4, IPv6, DNS, HTTP/HTTPS, MQTT, Modbus TCP |
|
| Remote Logging |
Syslog (UDP), configurable server address and port |
|
| Network Management |
SNMP v2c (Trap alerts), MIB provided |
|
| Firewall | DDoS (SYN flood) and port-scan protection | |
| Environment | -40 ~ 75 °C, 10 ~ 90 %RH (non-condensing) | |
| Dimensions | 83 × 74 × 25 mm (excluding antenna connectors), 125 g | |
| Ingress Protection | IP30 (unit); IP68 with waterproof enclosure | |
| Power | 9 ~ 30 VDC, reverse polarity protection, < 6.5 W |
|
|---|---|---|
| Cellular | 4G LTE Cat 4 (up to 150 Mbps download), 3G, 2G |
|
| Processor & Memory | CPU | 580MHz |
| Memory | 128 MB RAM | |
| Storage | 16 MB Flash | |
| Interface |
Ethernet |
2 × 10/100 Mbps (1 WAN or LAN, 1 LAN) |
| SIM card |
1 × external SIM slot (Mini SIM) |
|
| Digital I/O | I/O 1 × DI, 1 × open-collector DO (30 V / 300 mA) | |
| Antenna |
2 × SMA (LTE), 1 × RP-SMA (Wi-Fi) |
|
| Wi-Fi |
802.11 b/g/n, access point / hotspot, up to 50 clients |
|
| VPN |
OpenVPN, IPsec, WireGuard, L2TP, PPTP, GRE |
|
| Protocols |
TCP, UDP, IPv4, IPv6, DNS, HTTP/HTTPS, MQTT, Modbus TCP |
|
| Remote Logging |
Syslog (UDP), configurable server address and port |
|
| Network Management |
SNMP v2c (Trap alerts), MIB provided |
|
| Firewall |
DDoS (SYN flood) and port-scan protection |
|
| Environment |
-40 ~ 75 °C, 10 ~ 90 %RH (non-condensing) |
|
| Dimensions |
83 × 74 × 25 mm (excluding antenna connectors), 125 g |
|
| Ingress Protection | IP30 (unit); IP68 with waterproof enclosure | |
