Magnetic Contactor Panel

MCP

‧Built-in magnetic contactor and overload relay for on-site motors and pumps. ‧Single-phase AC 110V / AC 220V; contactor from 10A to 39A, up to 220V/7HP. ‧Dry contact and wet contact outputs, for use with DO4, DO8, DO16 or CBA. ‧Two enclosure sizes (300 / 400); up to 4 loads per panel. ‧Independent power disconnect for safe maintenance and fault isolation. –Applications–

Construction sites, industrial control facilities

Download Center Catalog User Manual Product FAQ

Optional Code & Specifications

MCP Code1 Code2Code3Code4

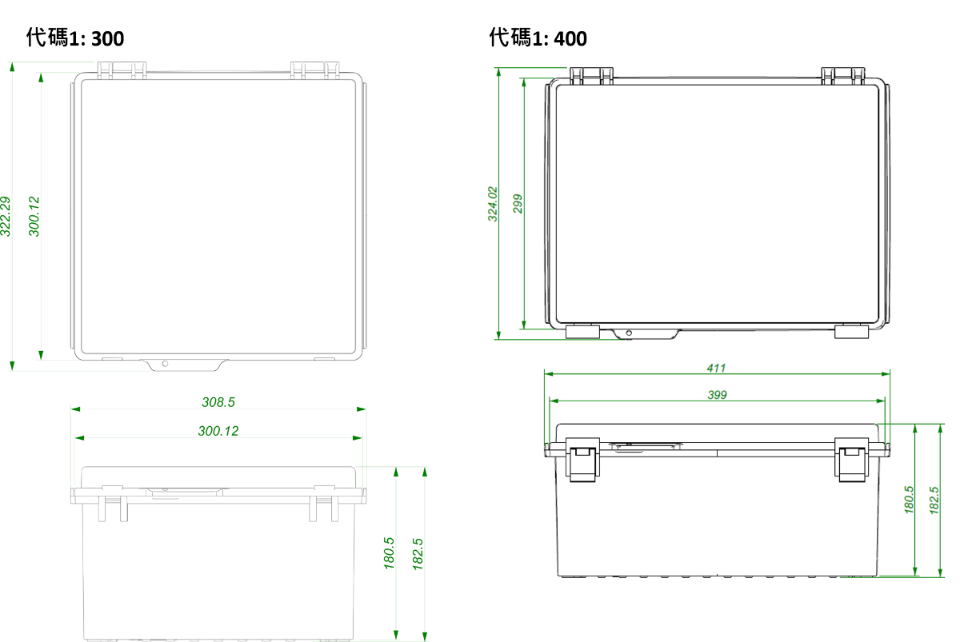

Code1	Enclosure	Code2	Load Voltage	Code3	Load Current (multi-select)	Code4	Output Type
300	300300180mm	110	AC 110V	10A	CU-11 110V/0.75HP、220V/1.5HP	D	Dry Contact (DO4/DO8/DO16)
				14A	CU-16 110V/1HP、220V/2HP
				20A	CU-18 110V/1.5HP、220V/3HP
400	300400180mm	220	AC 220V	26A	CU-22 110V/2HP、220V/4HP	W	Wet Contact (CBA)
				35A	CU-32 110V/2HP、220V/5HP
				39A	CU-38 110V/3HP、220V/7HP
